High voltage electrode hot water boiler

The electrodes are immersed in water with a certain conductivity. When electricity is applied, the conductivity of the water generates current, which generates heat and turns the water into high-temperature water or steam. This water can be stored through a heat exchange device outside the boiler or directly supplied to users.

Commodity name： High voltage electrode hot water boiler

Classification:

Key words:

Product Details

产品描述

1.Working Principle

The submerged double-barrel high-pressure electrode steam boiler consists of an inner cylinder and an outer cylinder, the outer cylinder is directly grounded, and the inner cylinder is isolated from the outer cylinder by insulating material.

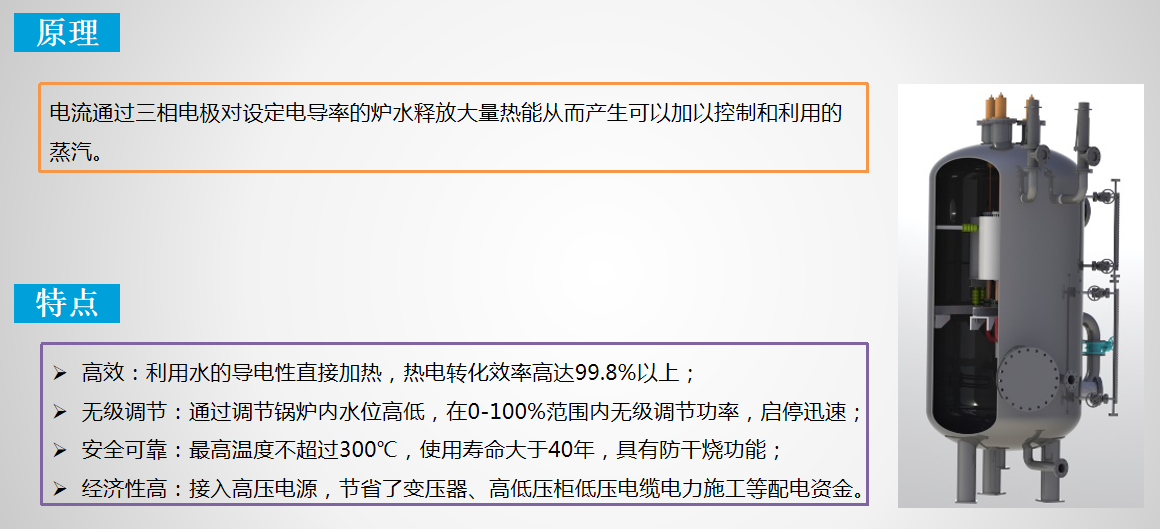

The three phase electrodes are arranged symmetrically in the inner cylinder to form zero potential and no neutral line is required. An electric current passes through a three-phase electrode to water with a set conductivity to convert electrical energy into heat energy, resulting in saturated steam that can be controlled and utilized.
The amount of boiler evaporation is controlled by the water level of the inner cylinder and the conductivity of the water.
Power Range4.3t/h-85.7t/h。
Working pressure≤2.5MPa。
Application scenarios: industrial steam supply, power plant start-up boiler

2.Performence Parameters

Type	Normal Pressure Boiler			Pressure Boiler
Model	LDJ-4	LDJ-8	LDJ-12	LDJ-4	LDJ-8	LDJ-12	LDJ-24	LDJ-40	LDJ-60
Capacity（MW）	1-4	5-8	9-12	1-4	5-8	9-12	13-24	25-40	50-60
Diameter（Mm）	1100	1400	1600	1400	1400	1600	2200	2400	2600
Height（Mm）	3000	4200	4800	3300	4200	4800	5200	7500	8600
Inlet And Outlet Size	DN150	DN200	DN200	DN150	DN200	DN200	DN250	DN300/350	DN300/350
Shipping Weight（Kg）	2000	2000	2800	1600	2200	3000	5200	6800	9200
Operating Weight（Kg）	4000	6000	9200	4400	6200	9400	18200	22800	30200
Work Pressure（Mpa）	Normal Pressure			0.6				1.25
Maximum Operating Temperature（℃）	95			120				150
Main Pressure Components	Q345R/304			Q345R
Voltage	10kV

3.System Introduction

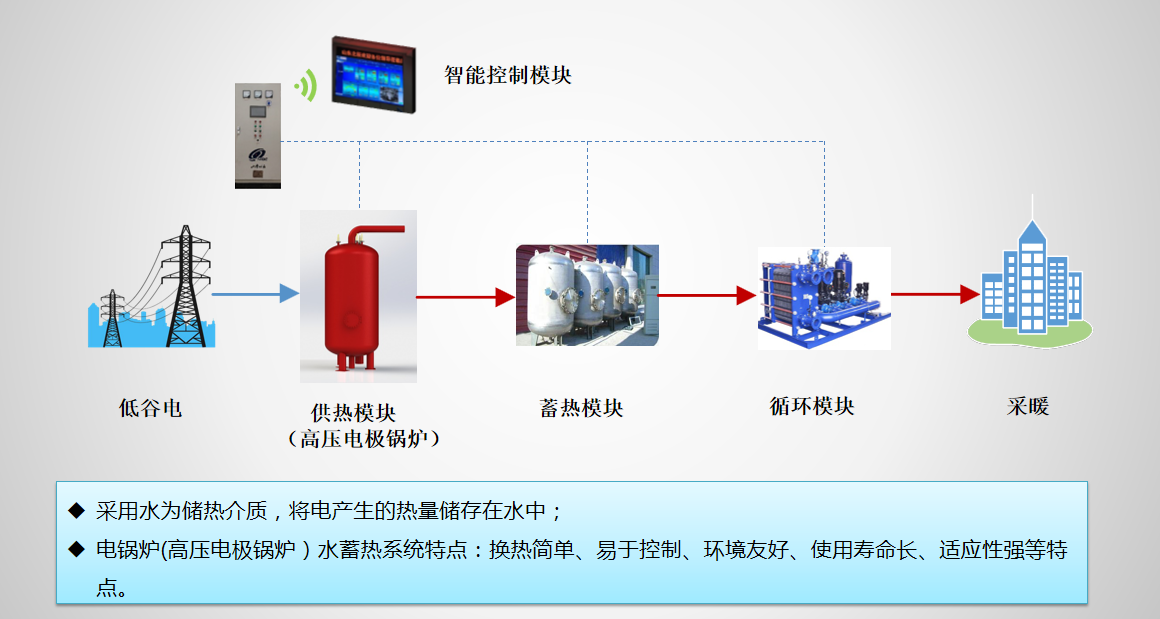

The high pressure electrode hot water boiler is integrated by the high pressure electrode boiler, circulating water pump, constant pressure device, plate heat exchanger, water treatment device and control system.
The high-pressure electrode boiler uses water with a certain conductivity. In order to control the stability of the conductivity, the board exchange system is used to isolate the primary side system
